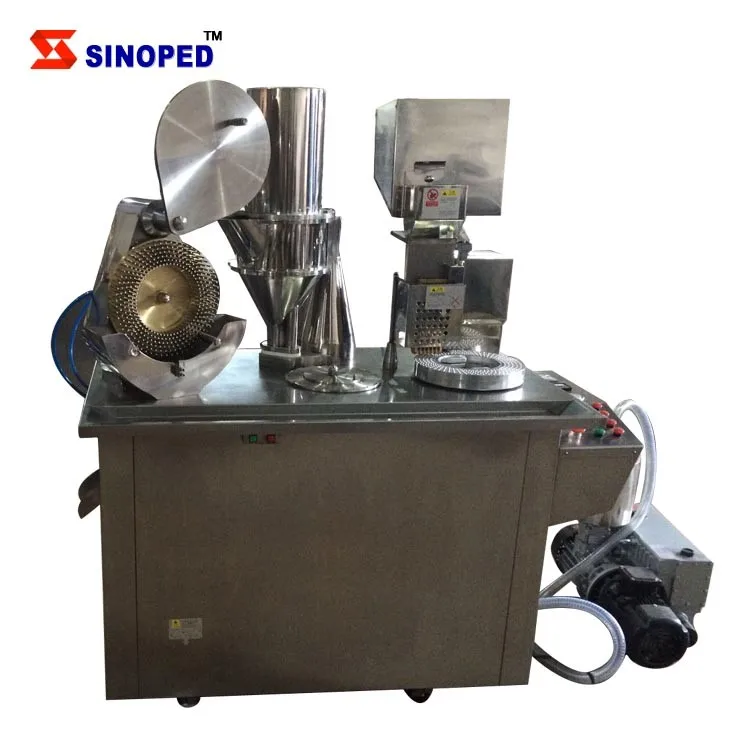

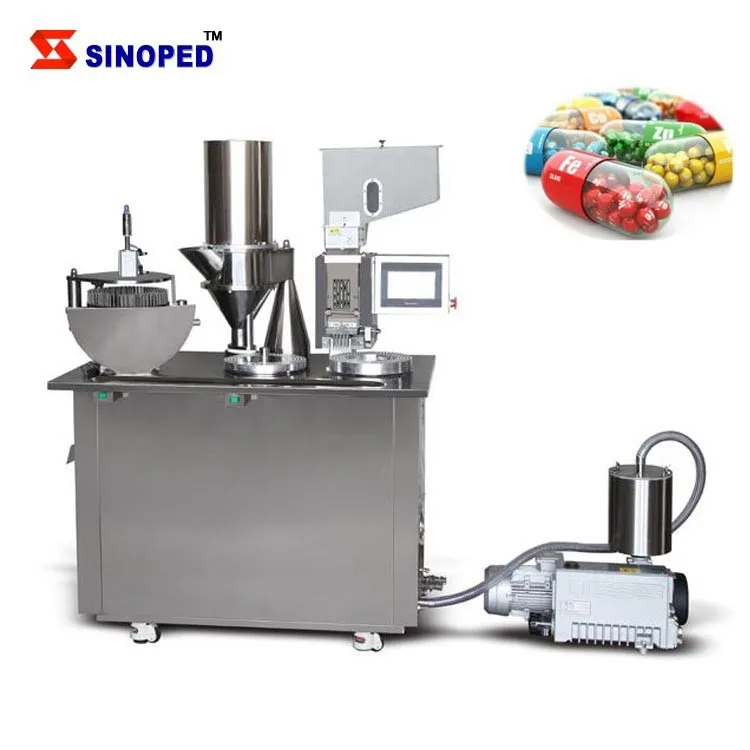

CGN208-D capsule filling machine

  • Place of Origin: China (Mainland)
  • Model Number: CGN208-D
  • Name: New design semi automatic capsule filling mach
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Product description: This capsule filling machine is suitable for medium & small pharmaceutical factory, hospital preparation lab, etc. It is adopted programmable control system, button or touch panel operation, step-less
  • INQUIRY

This capsule filling machine is suitable for medium & small pharmaceutical factory, hospital preparation lab, etc. It is adopted programmable control system, button or touch panel operation, step-less transduction to speed-shift.

Features:

1 Matching different size formats to fill 000#~ 4#capsule;
2 One size capsule matched one set format;

3  It can finish the whole filling capsule process, adjusted the capsule of cap and bottom, open the cap and bottom, filling powder, get rid of unqualified capsules, close the capsule, finished capsule;

4  Satisfied GMP standard, the powder will not be pollution, save powder materials than automatic capsule filling machine. Easy to be clean;

5  Low wear and tear. The structure is new, improved design;

6  Can filling all kinds of Chinese and foreign medicine powder, and granules;
7  Frequency control, the operation is safety and simply;

Model
CGN208-D1
Capacity
10,000 – 25,000 pieces/hour
Filling Range
Size 000,00, 0, 1, 2, 3, 4 empty hard gelatin capsules
Filling Type
Powder/Tiny granules
Power and Voltage
380V, 50Hz, 3phases, 4.0 KW
Air Pressure
0.03m3/min 0.7Mpa
Vacuum Pump
40m3/h
Weight
380KG

There will no further notification if the appearance or parameters of our products are modified. Thanks.
